Squirrel系列一体式成像仪采用独特的结构设计，具有外观美观，精致小巧，智能化，高灵敏等特点，触屏操作节省了外接电脑的空间。Squirrel系列成像仪免去了繁杂的安装调试，通电即可使用，通过“一键”操作，即可实现样品自动进样，自动拍摄图像，呈现实验结果。

‣ChemiScope S6一体式化学发光成像仪基于ECL、ECL PLUS等的化学发光样品的检测，比如Western Blot，Northern Blot，Southern  Blot等实验相关的印迹膜等。

ChemiScope S6一体式化学发光成像仪

● 一键点击，获得满意实验效果

● 高灵敏度：高灵敏度制冷CCD相机和大光圈镜头搭配，捕捉低丰度条带的微弱发光信号

● 智能操作：放上样品，一键点击，进仓自动拍摄白光marker和化学发光图像，并自动进行叠加

● 小巧机身：整机尺寸只有286mm * 355mm *321mm，内置10.1英寸触屏操控，节省实验室空间

● 数据传输：USB接口

ChemiScope S6一体式化学发光成像仪

操控：内置10.1英寸工业计算机，多点触控

相机：600万像素，高灵敏度制冷CCD相机

镜头：F/0.95大光圈定焦镜头

光源：白光反射

样品台：电动伸缩样品台

ChemiScope S6一体式化学发光成像仪

CS mini化学发光成像采集处理软件

‣精准自动曝光模式，一键拍摄，自动保存

‣具有1-99帧图像灰度累积，时间累积，自定义时间序列拍摄功能

‣具有自动拍摄Marker图像以及将Marker图像与化学发光图像自动叠加功能

‣具有高分辨率和高灵敏度等曝光模式可选

‣图像区域上下滑动即可调节条带亮度

分析软件

‣自动识别泳道和条带，可根据需要添加、删除、调整泳道，实现泳道的精确分离

‣自动计算泳道中各条带的光密度积分值和峰形图，方便计算各条带分子量大小

‣对指定区域进行光密度计算，适用于蛋白定量分析

‣自动去除背景模式，以获取准确优化的图像分析数据

‣分析结果可根据选择范围输出至 Excel 文件

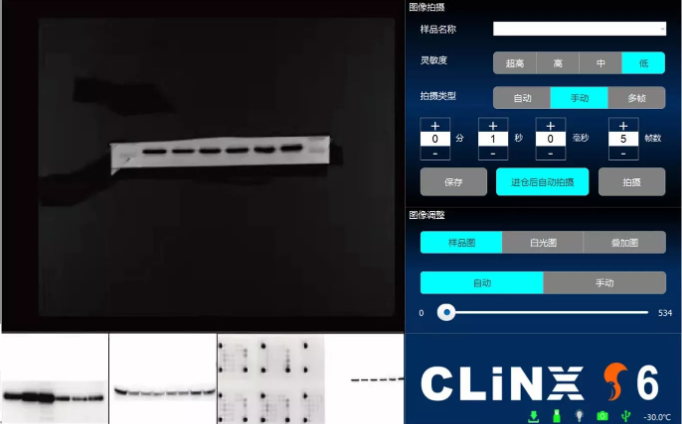

软件操作界面

软件操作界面

ChemiSignal Plus化学发光试剂

产品特点

■ 具有极高灵敏度和高信噪比，可检测10-100 fg 抗原； 可在自然光下进行操作，无需进入暗室；

■ 发光迅速，发光持续时间长；

■ 可使用更高的抗体稀释倍数 （1：2000-1：10000）极其节省抗体。

用途：用于HRP标记抗体的Western Blot和HRP标记探针的核酸杂交。

存储：4℃避光保存，有效期壹年，短时间可放置室温。

订货信息

1. A small and highly sensitive red/far-red optogenetic switch for applications in mammals. Nature Biotechnology (2021) 54.09

2. Yang, Jingyun, et al. "A vaccine targeting the RBD of the S protein of SARS-CoV-2 induces protective immunity." Nature (2020): 1-9. 41.577

3. Tian J, Wang C, Xia J, et al. Teosinte ligule allele narrows plant architecture and enhances high-density maize yields[J]. Science, 2019, 365(6454): 658-664. 41.03

4. Yang H, Hu M, Guo J, et al. Pore architecture of TRIC channels and insights into their gating mechanism[J]. Nature, 2016, 538(7626): 537. 41.577

5. Zhuo W, Liu Y, Li S, et al. Long Noncoding RNA GMAN, Up-regulated in Gastric Cancer Tissues,Is Associated With Metastasis in Patients and Promotes Translation of Ephrin A1 by Competitively Binding GMAN-AS[J]. Gastroenterology, 2019, 156(3): 676-691. e11 20.77

6. Liu Z, Wang L, Xu H, et al. Heterogeneous Responses to Mechanical Force of Prostate Cancer Cells Inducing Different Metastasis Patterns[J]. Advanced Science, 2020, 7(15): 1903583. 15.83

7. Wang J, Yu C, Zhang S, et al. Cell-type-dependent histone demethylase specificity promotes meiotic chromosome condensation in Arabidopsis[J]. Nature plants, 2020, 6(7): 823-837. 13.25

8. Tie, Yan, et al. "Targeting folate receptor β positive tumor-associated macrophages in lung cancer with a folate-modified liposomal complex." Signal transduction and targeted therapy 5.1 (2020): 1-15 13.49

9. Yu Y , Wu X , Guan N , et al. Engineering a far-red light–activated split-Cas9 system for remote-controlled genome editing of internal organs and tumors[J]. Science Advances, 2020,

6(28):eabb1777. 13.117

10. Du K , Luo Q , Yin L , et al. OsChz1 acts as a histone chaperone in modulating chromatin organization and genome function in rice[J]. Nature Communications, 2020, 11(1). 12.353

11. Wu S, Zhong G, Zhang J, et al. A single dose of an adenovirus-vectored vaccine provides protection against SARS-CoV-2 challenge[J]. Nature communications, 2020, 11(1): 1-7. 12.353

12. Stietz M S, Liang X, Li H, et al. TssA–TssM–TagA interaction modulates type VI secretion system sheath-tube assembly in Vibrio cholerae[J]. Nature Communications, 2020, 11(1): 1-11. 12.353

13. Wu J , Wang M , Yang X , et al. A non-invasive far-red light-induced split-Cre recombinase system for controllable genome engineering in mice[J]. Nature Communications, 2020, 11(1). 12.353

14. Zui Zhang1,2, Juan Guan1 , Zhuxuan Jiang1 , et al Brain-targeted Drug Delivery by Manipulating Protein Corona Functions Nature communications,2019 12.353

15. Luo Y, Teng X, Zhang L, et al. CD146-HIF-1α hypoxic reprogramming drives vascular remodeling and pulmonary arterial hypertension[J]. Nature communications, 2019, 10(1): 1-17. 12.353

16. Duan J L, Ruan B, Yan X C, et al. Endothelial Notch activation reshapes the angiocrine of sinusoidal endothelia to aggravate liver fibrosis and blunt regeneration in mice[J]. Hepatology, 2018, 68(2): 677-690.

17. Bian, R., Andika, I. B., Pang, T., Lian, Z., Wei, S., Niu, E., ... & Sun, L. (2020). Facilitative and synergistic interactions between fungal and plant viruses. Proceedings of the National Academy of

Sciences, 117(7), 3779-3788. 9.5

18. Shao J, Wang M, Yu G, et al. Synthetic far-red light-mediated CRISPR-dCas9 device for inducing functional neuronal differentiation[J]. Proceedings of the National Academy of Sciences, 2018, 115(29): E6722-E6730. 9.5
